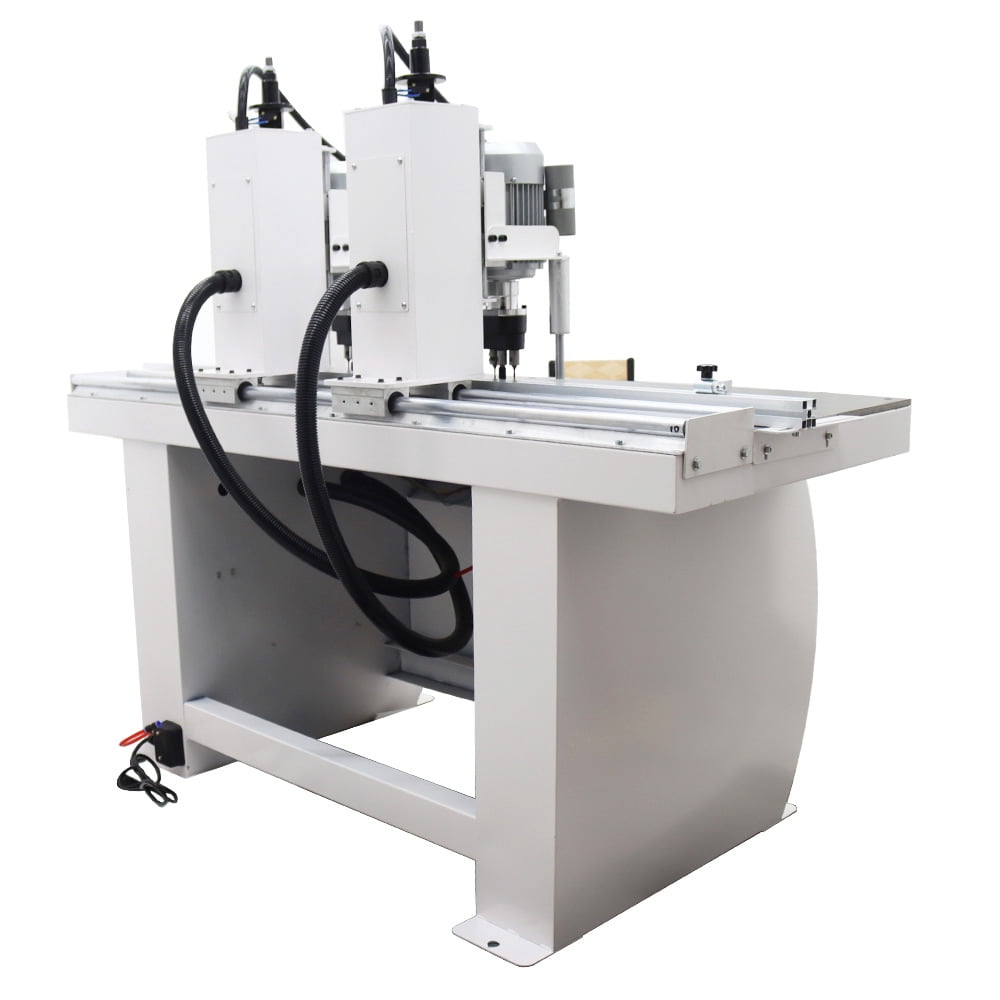

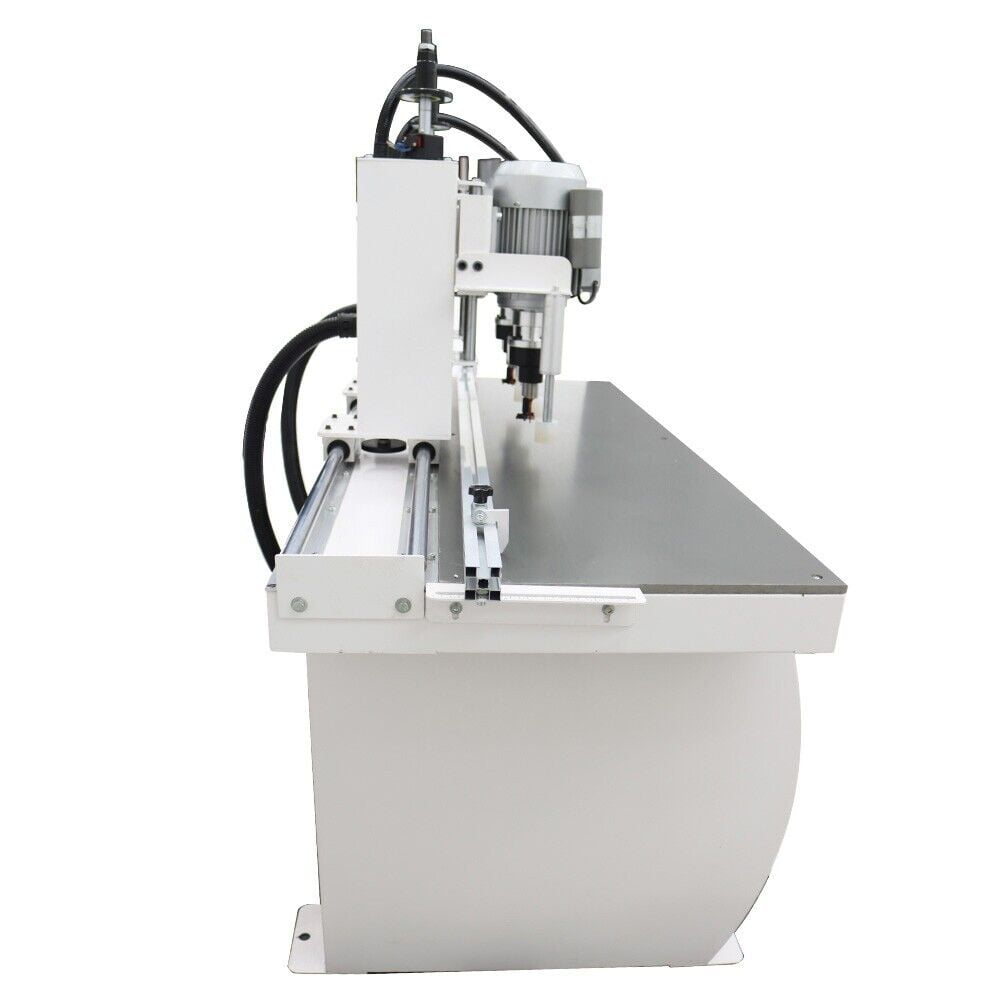

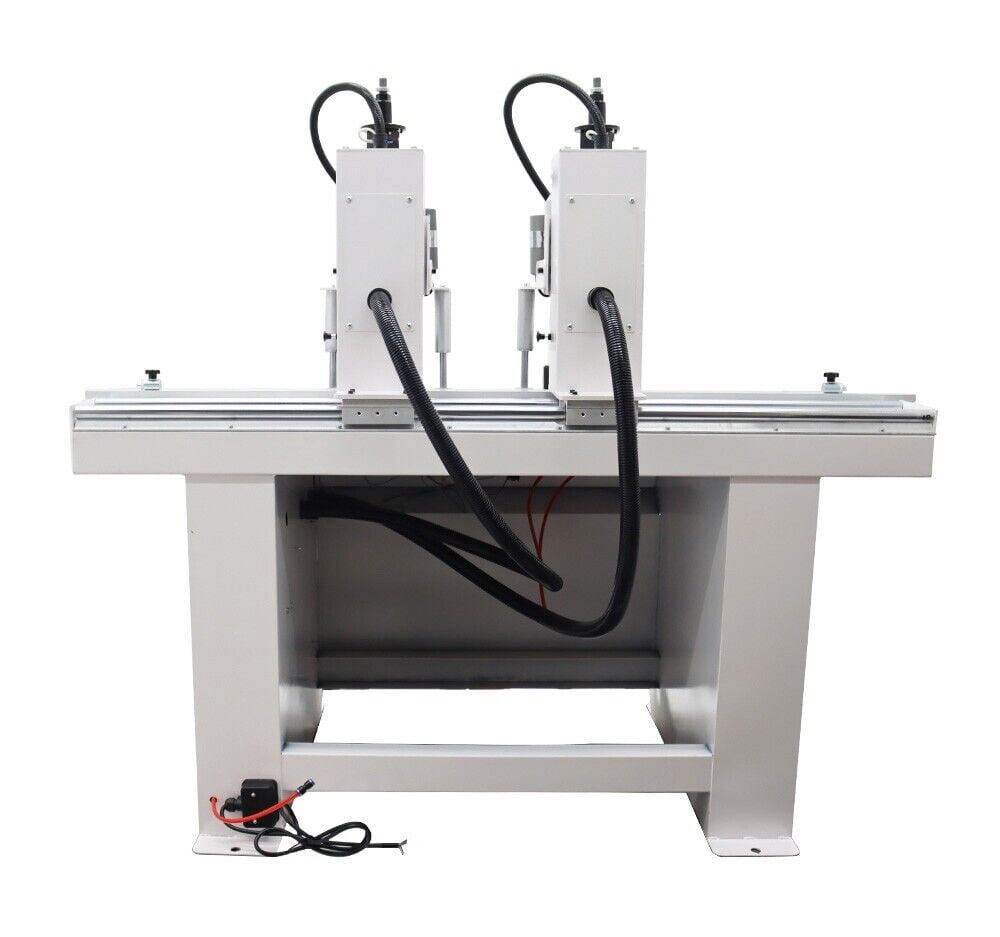

Double Station Woodworking Hinge Drilling Machine Pneumatic Hinge Boring Press Machine φ35mm & φ3mm Drill Bit

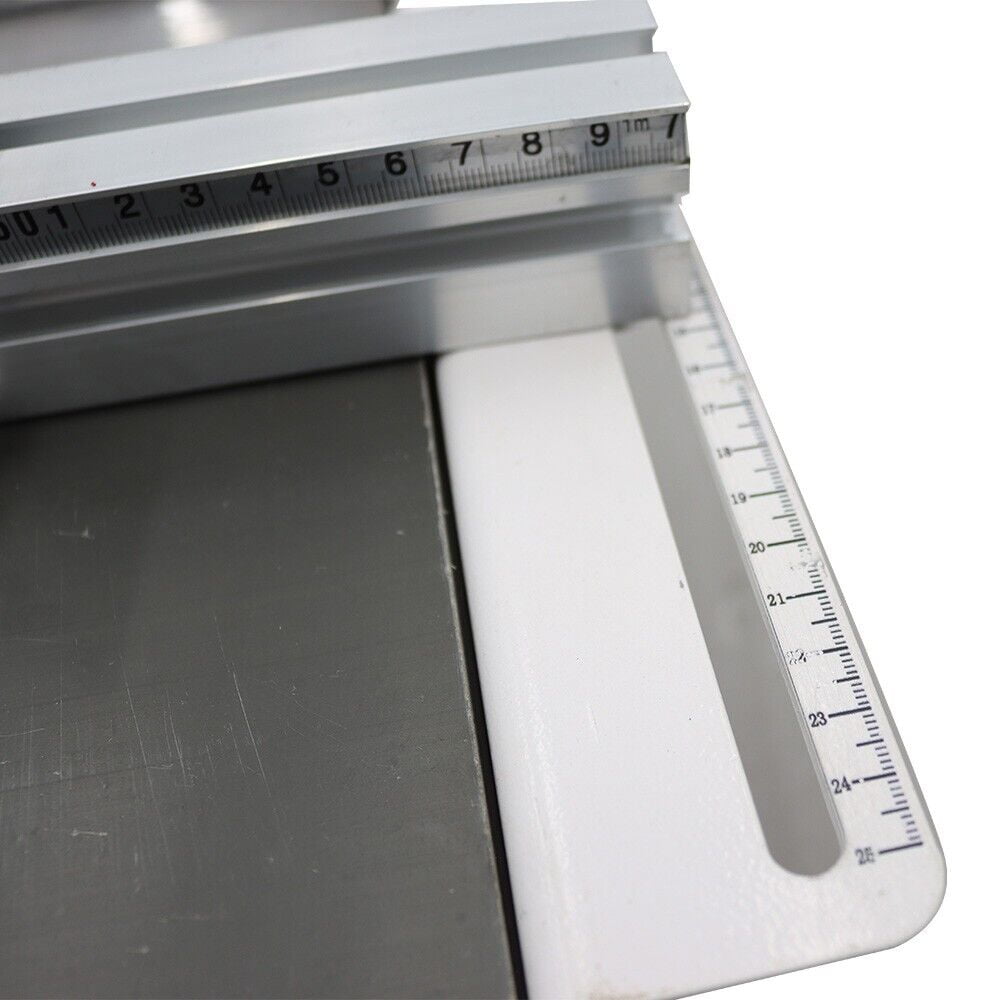

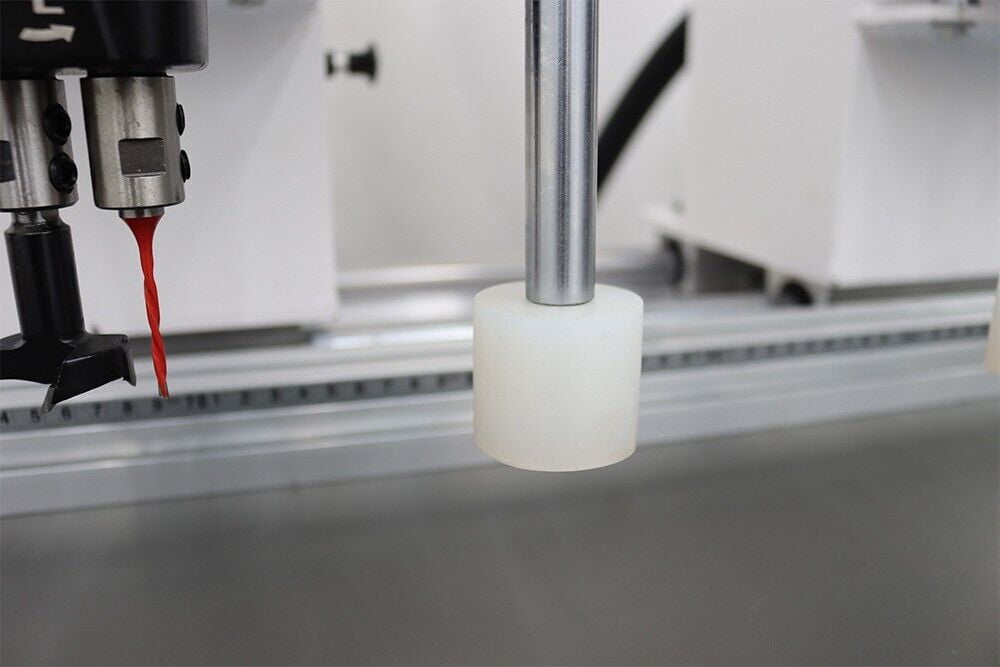

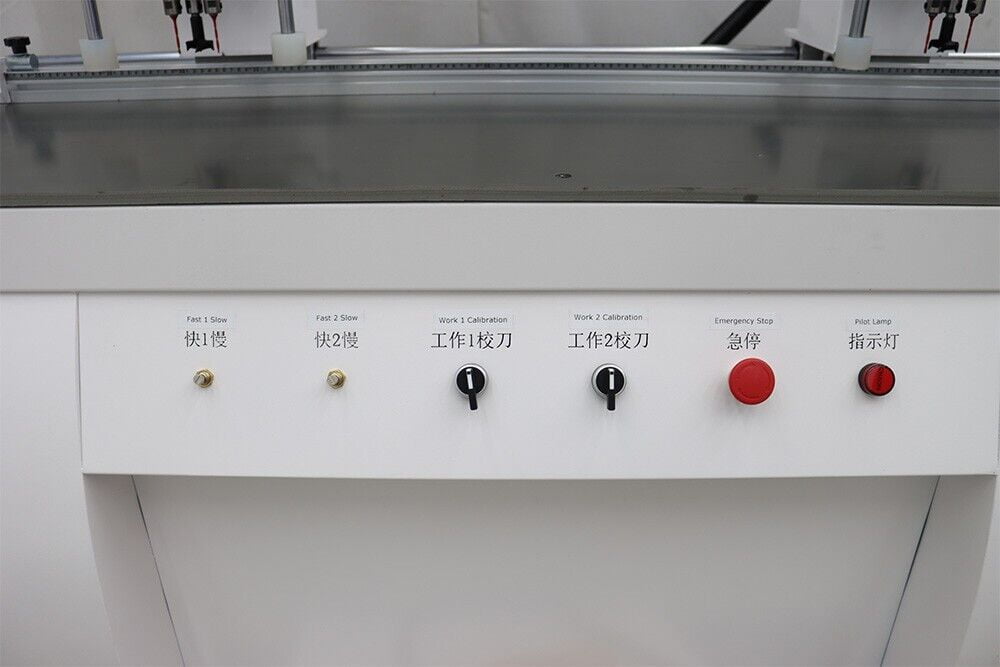

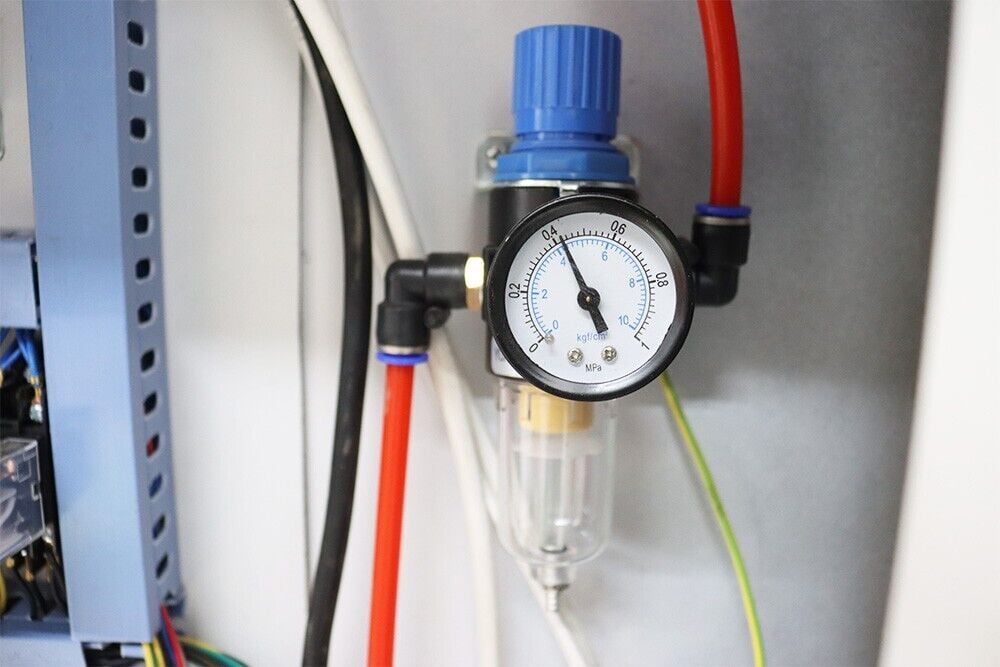

<p>Description:<br>This double head woodworking hinge drilling machine features elegant appearance, humanized design, simple and convenient operation, flexible, stable and reliable drilling operation, high efficiency.</p> <p>Product Parameter:<br>1. Single Motor power: 1.5KW*2<br>2. Voltage: 110V/60HZ<br>3. Drill bit: φ35mm*1,φ3mm*2<br>4. Maximum depth of hole: 0-50mm<br>5. Combined drill model: 48-6<br>6. Speed of main shaft: 3400R/min<br>7. Air pressure: 0.6-0.8Mpa<br>8. Ruler: 66.9″(1700mm)<br>Note: Please confirm the mounting size of the hinge before purchasing.</p> <p>Details:<br>1. Rubber Pressure: Air spring rubber compression device to easily secure the board.<br>2. Control Panel: Button operation, simple and convenient, with emergency stop switch, more safe.<br>3. Positioning Stop: Adjust the position of the positioning baffle at will according to the scale as needed.<br>4. Ruler: The scale control is accurate to reduce the error rate.<br>5. Station Limit Valve: When the working position is determined, fix the working head by pulling the black knob.</p> <p>Precautions for Use:<br>1. Before operation, check whether the power cable is properly connected, whether the protective device and the pressing device are complete, and whether the components are normal.<br>2. The operating position should be bright and without shadow.<br>3. The drill should be centered, balanced and sharp.<br>4.This machine is mainly used for wood punching processing(thin aluminum can also be), and the selection of materials can not have nails, screws and other tools damaged or blunt foreign bodies.<br>5. Hands should not touch the rotating parts of the machine tool during operation, and the wood chips should not be removed during operation. The power supply must be cut off before adjusting or removing the wood chips, and can only be carried out after the machine tool stops working.<br>6. Stop the machine immediately if anything abnormal is found.</p> <p>Item Included: 027348<br>Double Station Woodworking Hinge Drilling Machine Pneumatic Hinge Boring Press Machine φ35mm &amp; φ3mm Drill Bit</p>

• Used for punching cabinet furniture, wardrobe, bookcase and other hinge installation holes.

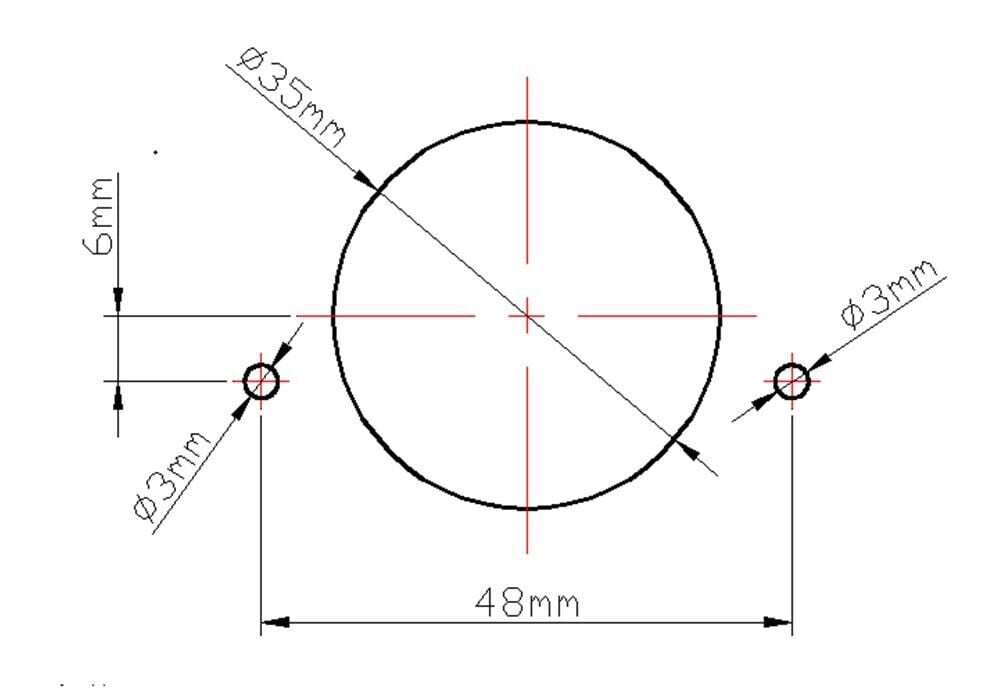

• The machine has tool calibration device, which can ensure the need of drilling depth. Three holes in the vertical position can be processed at one time, including one big hole for hinge head hole and two for assembly screw hole. Suitable for drilling various profiles.

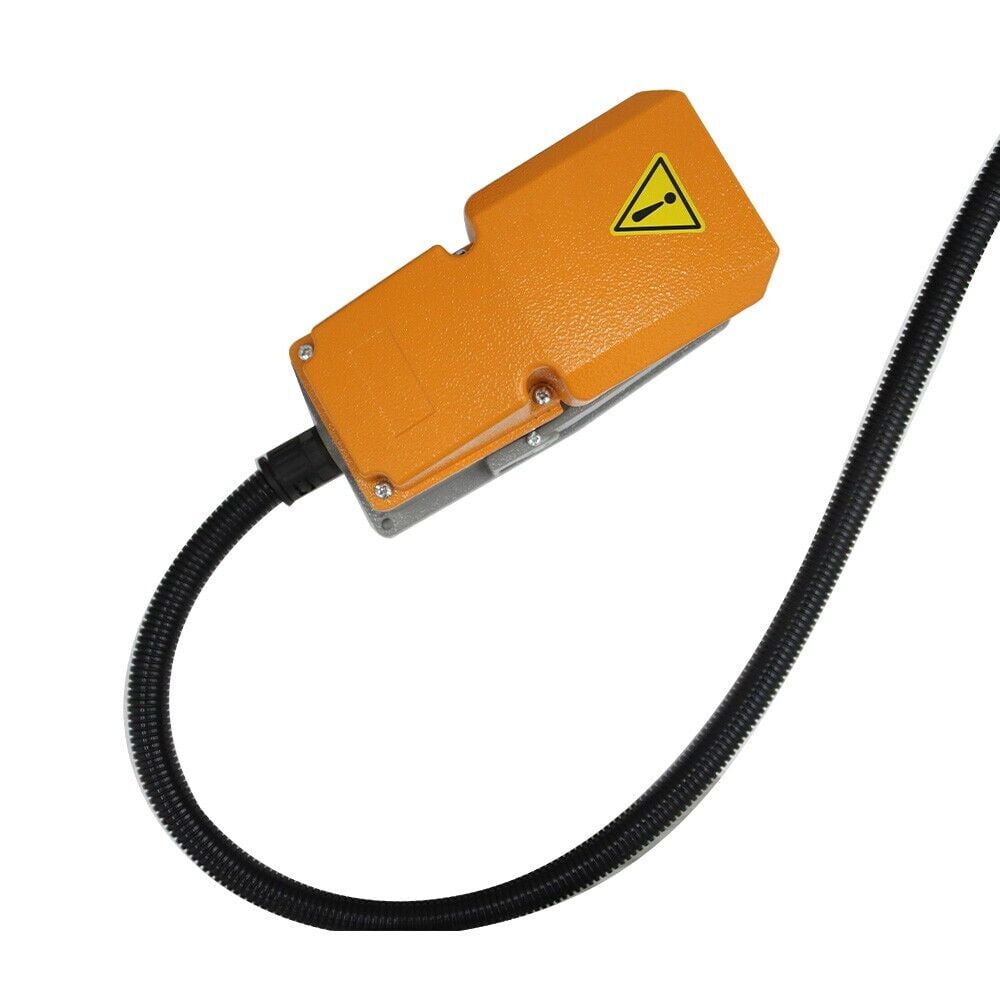

• Foot switch control machine operation, high sensitivity, stable and durable, anti-skid wear, free hands.
• Thickened and enlarged table, easy to use, ensure success rate.

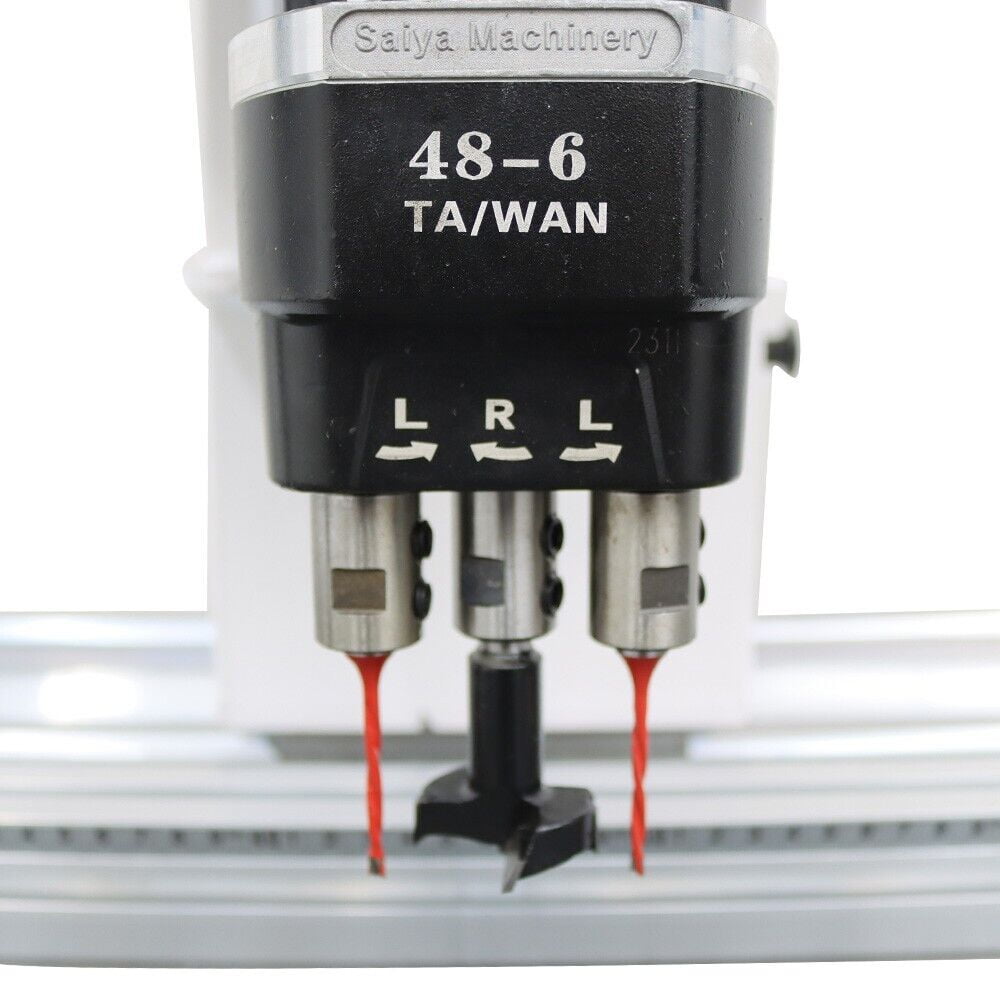

• High quality combination drill, drill bit can be changed at any time.
